http://www.wikco.biz/stc100.103

All Wikco Industries Products Feature All Steel Construction, Made to Last. Save...Time...Work...Money
WE HAVE SOLD THOUSANDS OF THE STC100.103

STC100-103: Price is $424.95 Plus Shipping.
Shipped In 2 Cartons 54 lbs. and 12 lbs.

Model #SC100 Base unit, change tires on car, pickup, and trailer tires, or any other tire with a center hole in the wheel from 1 3/4" to 4" and wheel sizes from 8" to 19", with a maximun wheel width not to exceed 12".
Price is: $299.95 Plus Shipping. Shipped In 1 Carton 54 lbs.

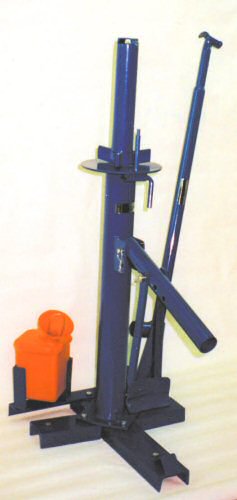

Shown With Small Tire Accessory SC100 Base Unit

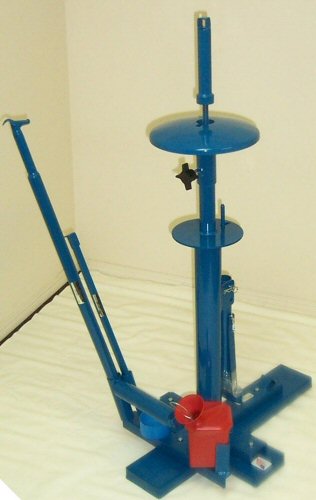

The Self-Change 100.103 Manual Tire Changer

Model # STC100.103

The Self-Change tire changers are the original manual tire changers for power equipment and car wheels. No other model will do as many sizes or types of wheels as the model STC100.103 or the model SC160.

Features/Specifications

Comes with bead breaker and all the tools needed.
All steel construction for heavy duty use.
Change tires on wheels with rim sizes from 4" through 16.5" in diameter, up to 12" wide.
Completely manual, no air or electric hookup required.
Accessory available for motorcycle and open center trailer or car wheels.
Comes with tool holder rack to hold accessories and mount / demount bars.

Wikco Tire Changers

Change tires on cars, light trucks, ATV's, small farm implements, golf carts, go-carts, outdoor power equipment tires
Used by professional shops of all sizes, lawn and garden centers, power equipment shops, golf courses, city park departments, and do it yourself garages and shops.
Made in the USA and warranted for 2 years.

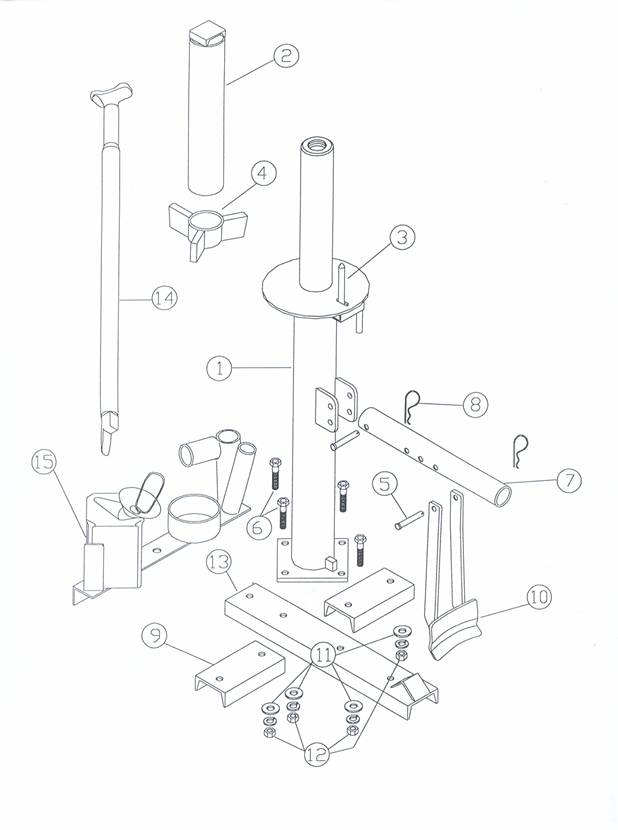

Parts Drawing & List

Part Number	Description	Retail Price


100-1	Changing Stand	$ 139.00
100-2	Cap	$ 44.95
100-3	Wheel Lug Peg	$ 17.00
100-4	Spider	$ 19.95
100-5	7/16" Clevis Pin	$ 1.59
100-6	3/8" X16 X 1" Hex Bolt	$ 0.65
100-7	Bead Breaker Handle	$ 21.00
100-8	Bridge Pin	$ 0.89
100-9	Side Base Channel	$ 14.95
100-10	Bead Breaker Shoe	$ 24.95
100-11	3/8" Flat & Lock Washers	$ 0.50
100-12	3/8" - 16 Hex Head Nut	$ 0.40
100-13	Long Base Channel	$ 29.00
100-14	Large Demounting / Mounting Tire Bar	$ 79.00
100-17	Red Lube Bucket	$ 14.95
100-18	Tire Lube Swab	$ 6.50
103-1	Base / With Threaded Rod	$ 74.95
103-2	Knob	$ 5.95
103-3	Small Cap	$ 24.95
103-4	Small Demounting / Mounting Tire Bar	$ 37.95
103-5	Spacer	$ 9.00
103-6	Extension	$ 13.95
103-7	Center Post (requires drilling & welding)	$ 35.95
100-14C	Custom MC Demounting / Mounting Tire Bar	$ 99.00
109ATV	ATV Bead Breaker	$ 49.95
101	Tire Spreader	$ 49.95

Part # 100-14C Custom Demounting / Mounting Tire Bar

Part # 100-14C Custom Wheel Bar

109ATV Bead Breaker

101 Tire Spreader

***********************************************************************************************************************************

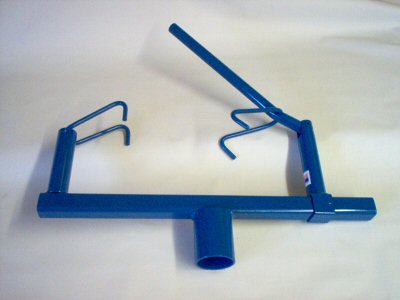

Model # 110.HA 2 Inch Receiver Hitch Attachment

Price Is $79.95 Plus Shipping

The Model # 110.HA Hitch Attachment allows you to mount any of the Wikco brand tire changers to your car or truck 2 inch receiver hitch. This includes the model # MC110.100 motorcycle tire changer, model # MC110.200 motorcycle tire changer, and the model # STC100.103 manual tire changer with the small tire accessory. One end of the attachment bolts to the tire changer using the 2 U-bolts and the 2 V-shaped clamps (included). The other end inserts into the 2 inch receiver hitch on your vehicle. The hitch attachment gives you approxamently 44 inches of length from the end of the receiver hitch, and is adjustable several inches up or down.

********************************************************************************************************************************

Model # MC110 Motorcycle Tire Attachment

designed to fit on either the Self-Change 100, or the STC100.103,or the Self-Change160. Change wheels on mini-bikes, motorcycles, and open center ATV and trailer wheels. This item, and all Wikco Industries tire changing tools and accessories are designed to fit only Wikco brand products, and are not recommended for use with other brand of tire changers.

Model # MC110 Motorcycle Tire Attachment

Price is $305.95 Plus Shipping

********************************************************************************************************************************

To Order Products or Parts, Call (800) 872 - 8864.
