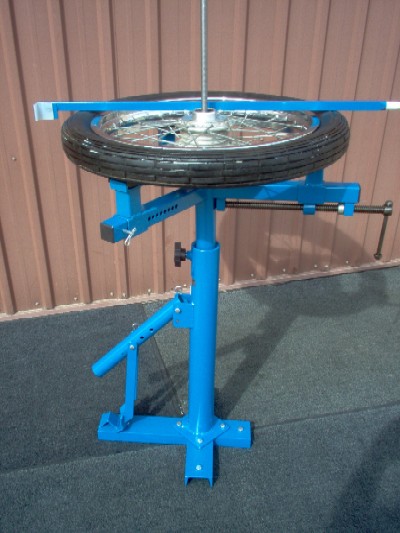

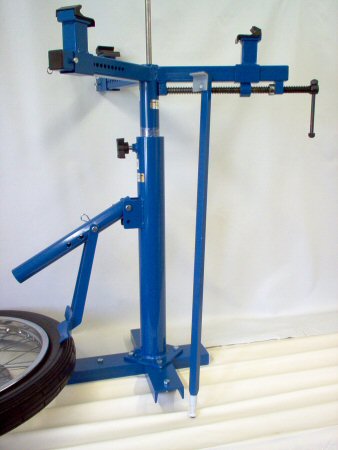

Heavy
Duty Wheel Clamp
|
Demounting/Mounting
Tire Bar
|
Replacable
Protective Ends
|
Bead
Breaker Shoe
|

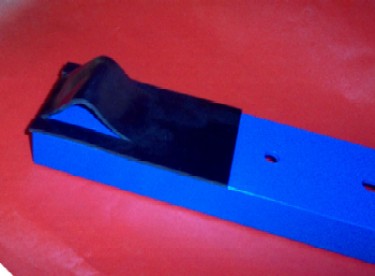

Bead
Breaker Channel
|
Features/Specifications:

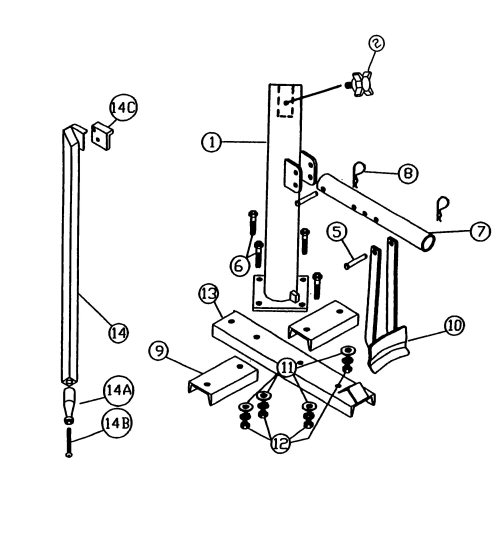

MC110.200 Parts: | ||
Part Number | Description | Quantity |
Part 100-1 | Tire Changer Stand | 1 |
Part
100-2 |
Knob |
1 |
Part 100-5 | Clevis Pin | 2 |
Part 100-6 | 3/8" bolts | 4 |
Part 100-7 | Bead Breaker Handle | 1 |
Part 100-8 | Bridge Pin | 2 |
Part 100-9 | Short Base Channel | 2 |
Part 100-10 | Bead Breaker Shoe | |
Part 100-11 | 3/8" Flat Washer & Lock Washer | 4 Sets |
Part 100-12 | 3/8" Nut | 4 |
Part 100-13 | Long Base Channel | 1 |
Part 100-14C | Large Custom MountlDemount Bar | 1 |
Part 100-14A | Replaceable Demount End | 1 ($9.95 ea.) |
Part 100-14B | Bolt (Demount End) | 1 ($3.50 ea.) |
Part 100-14C1 | Replaceable Insert (Mount End) | 1 ($9.95 ea.) |

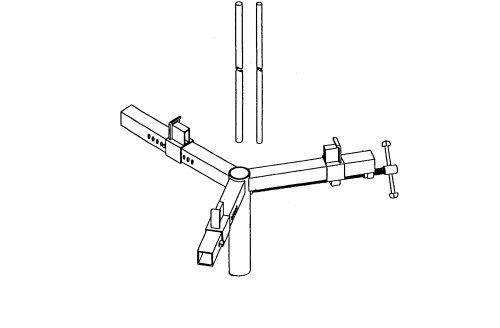

Parts List: MC110 Wheel Vise | ||
Part 110-100-1 | Center Post, 9/16" diameter | 1 |
Part 110-100-2 | Center Post, 7/16" diameter | 1 |
Part 110-100-3 | Slider Clamp | 2 |
Part 110-100-4 | Bridge pin and clevis pin set | 2 |
Part 110-100-5 | Clamp Screw | 1 |
Part 110-100-6 | Frame | 1 |

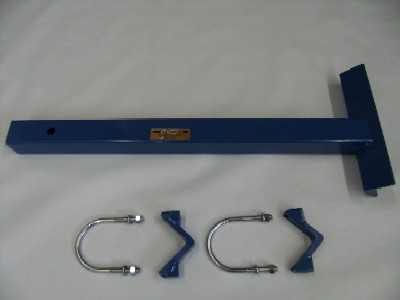

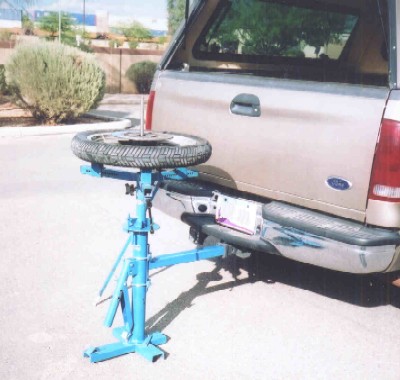

Model # 110.HA 2 Inch Receiver Hitch Attachment
Price Is $79.95 Plus Shipping
The Model #
110.HA Hitch Attachment allows you to mount any of the Wikco brand tire
changers to your car or truck 2 inch receiver hitch. This includes
the model # MC110.100 motorcycle tire changer, model # MC110.200
motorcycle tire changer, and the model # STC100.103 manual tire changer with
the small tire accessory. One end of the attachment bolts to the tire changer
using the 2 U-bolts and the 2 V-shaped clamps (included). The other end inserts
into the 2 inch receiver hitch on your vehicle. The hitch attachment gives you
approximately 45 inches of length from the end of the receiver hitch, and is
adjustable several inches up or down.
This Accessory is designed to fit the
MC110.200 Motorcycle Tire Changer.

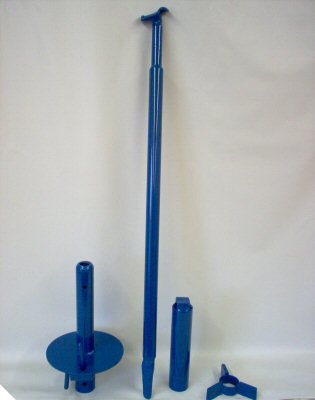

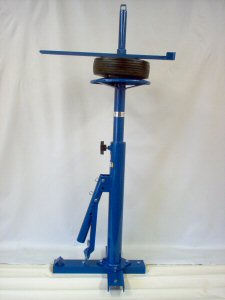

Use this
accessory to change tires on car, pickup, and trailer tires, or any other tire
with a center hole in the wheel from 1 3/4" to 4" and wheel sizes
from 8" to 19" , with a maximum wheel width not to exceed 12".
Used by power
equipment shops, auto shops, golf courses, landscape companies, tire shops,
schools, as well as private individuals.
Over the years
we have sold thousands of this same attachment with very positive feedback.
Comes complete
with screw on hold down cap, and spider to hold the wheel down tight. Also
comes with our popular all steel, large tire mount / demount tire bar
(the tire bar
alone is a $79.00 value).
Price for the 4 piece kit is $175.95 Plus Shipping.

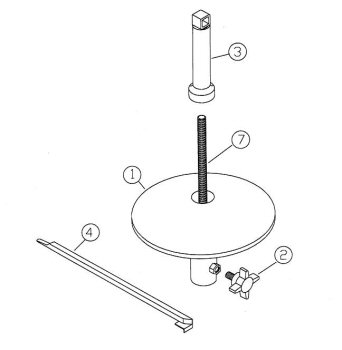

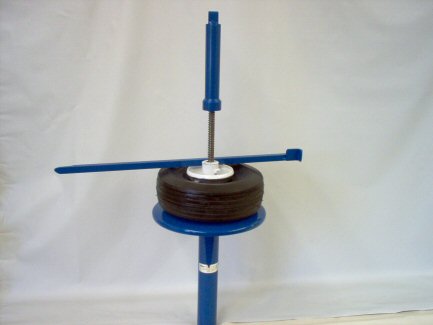

Model # STC103c Small Tire Changing Accessory
This Accessory is designed to fit the
MC110.200 Motorcycle Tire Changer.
Use this
accessory to change tires on those hard to hold small wheels -
4" to 10" with a center hole or bearing of 3/4" such as
on power equipment, mowers, golf carts, ATVs, and go-carts.
Used by power
equipment shops. golf courses, landscape companies, tire shops, schools, as
well as private individuals.
Over the years
we have sold thousands of this same attachment with very positive feedback.
Comes complete
with screw on hold down cap, and our popular small tire mount / demount tire
bar.
Price for the 3 piece kit is $149.95 Plus Shipping.

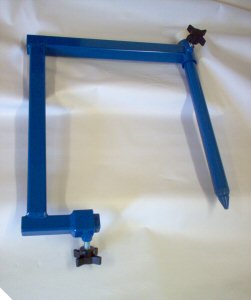

Model #109 ATV Bead Breaker
The
109ATV Bead Breaker Shoe also has a lever arm that attaches so you
can keep the bead breaker shoe tightly against the rim. Ideal for breaking the
bead on ATV wheels, also the Bead Breaker Shoe works great on
motorcycle wheels, now included is a protective plastic insert that will
protect the wheels from scratching, and gouging. This item and all Wikco
Industries tire changing tools and accessories are designed to fit only Wikco
brand products, and are not recommended for use with other brand of tire changers.
Price is $58.95 Plus Shipping.
