Wikco Industries Model 136 Estate Turf Groom Sweeper
The Model 136 Is A Special Order Item Please Allow 21 Days For Delivery
Order By Phone Phone: (800) 872 - 8864
Price
is $1255.95 Plus Shipping

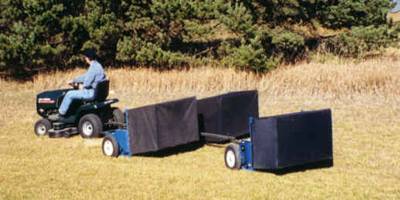

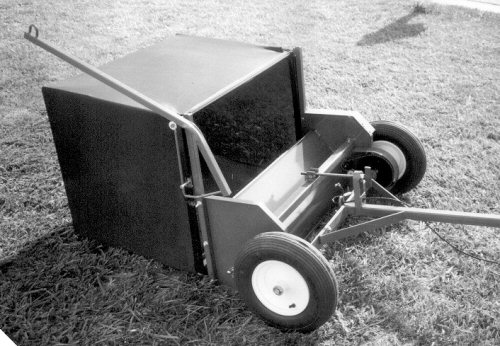

The model 136 Estate Turf Groom Sweeper is a heavy duty tow behind sweeper, designed to be towed behind an ATV,
garden tractor, commercial mower, turf truck, or tractor. Pneumatic wheels on
8" rims provide the driving power for the high speed brush that turns at
approximately 1500 rpm when the sweeper is towed at mowing speeds. The brush
has the power to pick up leaves, pine needles, wet or dry grass clippings, and
other similar debris. The free discharge at mowing speeds will go 3 to 4 feet
high, which insures complete bag fill. The model 136 was designed to be more
heavy duty than many similar sweepers of this type that are currently
available. The model 136 has been designed for use at golf courses, schools,
athletic fields, parks, large estates, and large recreational areas. Sweeps a
36" wide path quickly, and is a great alternative to large tractor
sweepers that only windrow the material, and can be used to pick up windrowed
material from a large tractor mounted sweeper. The model 136 is also a lower
cost alternative to engine driven grass collection systems on mowers.
|
Features:
- Tow behind, ground driven sweeper
- Driven by 16" OD pneumatic tires on 8"
diameter rims
- 36" wide swept path
- Clutch to disengage brush while
transporting
- Free discharge 3 to 4 feet high,
insures complete bag fill
- Large 14 cu. ft. bag easily dumps by
pulling on a single lever
- Special spiral brush design minimizes
scuffing and wheel skid on uneven surfaces
- Heavy duty nylon mesh bag eliminates
air flow back pressure allowing for complete bag fill, bag is washable
and durable
- Spring loaded clutch lever to
disengage brush, high speed self-aligning bearings on
brush
- Ratchet type differential on each
wheel to eliminate wheel skid during turns
- Heavy steel frame a features which
make the model 136 more suitable for heavy use
- Color is blue, shipping weight
approximately 190 lbs.
|
|
 |
Model 136HITCH
This
Hitch Will Pull 3 Sweepers Hitch Together.
Price
Is $249.95 Plus Shipping. |
 |

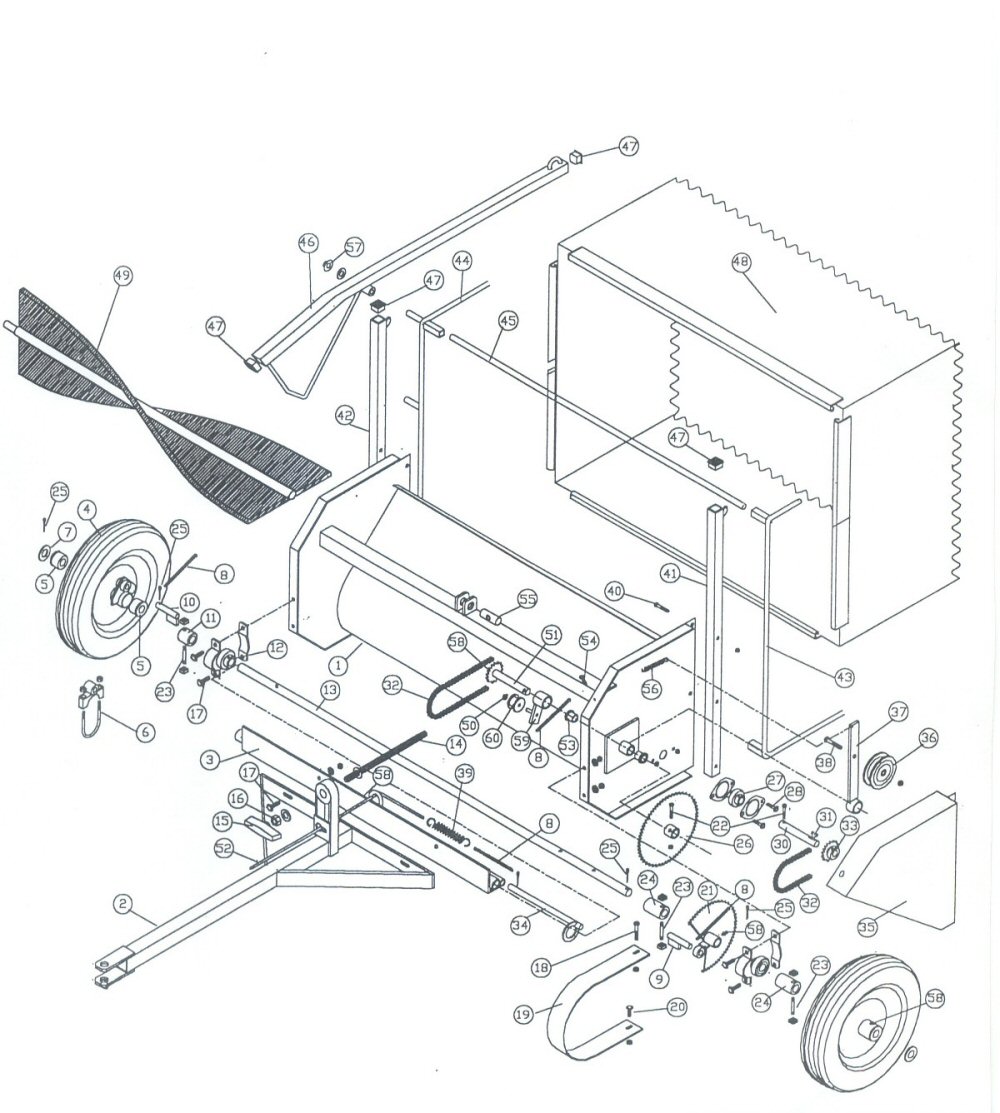

Parts
Drawing / List
 |
Parts List
| Reference # |
Description |
Quantity
Required |
Part
Number |
Retail
Price Each |
| |
|
|
|
|
| 1 |
Main
Chassis |
1 |
13601
A |
$210.00 |
| 2 |
Tongue Assembly |
1 |
13602
A |
$59.00 |
| 3 |
Axle
Support Tube |
1 |
13603
A |
$65.00 |
| 4 |
Wheel/Tire Assembly |
2 |
13604
A |
$49.95 |
| 5 |
Wheel Bearing |
4 |
13605
A |
$5.95 |
| 6 |
Ratchet Holder Assembly* |
2 |
13606
A |
$15.95 |
| 7 |
3/4”
Washer |
3 |
13607
A |
$0.50 |
| 8 |
Spring |
4 |
13608 A |
$3.50 |
| 9 |
Clutch
Pawl |
1 |
13609
A |
$7.00 |
| 10 |
Ratchet
Pawl |
2 |
13610
A |
$7.00 |
| 11 |
Short
Ratchet Dog |
1 |
13611
A |
$9.00 |
| 12 |
3/4”
Pillow Block |
2 |
13612
A |
$24.95 |
| 13 |
3/4”
Main Axle |
1 |
13613
A |
$31.00 |
| 14 |
Threaded
Lift Rod |
1 |
13614
A |
$11.00 |
| 15 |
Hand
Wheel |
1 |
13615
A |
$9.00 |
| 16 |
1/2”HexNut |
1 |
13616
A |
$0.45 |
| 17 |
5/16
X I" Bolt / Nut / Washer |
6 |
13617
A |
$0.85 |
| 18 |
5/16
X 2 1/2" Bolt & Nut/Washer |
1 |
13618
A |
$1.00 |
| 19 |
Curved
Chain Guard |
1 |
13619
A |
$17.00 |
| 20 |
5/16
X 3/4 Carriage Bolt/Nut/Washer |
1 |
13620
A |
$0.95 |
| 21 |
60
T Clutch Sprocket |
1 |
13621
A |
$41.00 |
| 22 |
l/4
X 1 1/4 Bolt & Locknut |
2 |
13622
A |
$0.95 |
| 23 |
5/16
X 1 3/4 Stud & Nut |
3 |
13623
A |
$6.00 |
| 24 |
Long
Ratchet Dog |
2 |
13624
A |
$10.00 |
| 25 |
1/8"
Cotter Key |
4 |
13625 A |
$0.25 |
| 26 |
60 T Sprocket X 5/8 Bore |
1 |
13626
A |
$36.00 |
| 27 |
Flange
Roller Bearing |
2 |
13627 A |
$21.00 |
| 28 |
1/4
x 3/4 Bolt/Nut/Washer |
4 |
13628
A |
$0.95 |
| 30 |
Brush
Drive Axle |
1 |
13630
A |
$15.00 |
| 31 |
3/16"
Key Way |
1 |
13631
A |
$0.50 |
| 32 |
No.
35 Roller Chain |
2 |
13632
A |
$15.00 |
| 33 |
Brush
Drive Sprocket |
1 |
13633
A |
$16.00 |
| 34 |
Clutch
Pull Rod |
1 |
13634
A |
$10.00 |
| 35 |
Outer
Shield |
1 |
13635
A |
$29.95 |
| 36 |
Idler Pulley |
1 |
13636
A |
$14.00 |
| 37 |
Idler Arm |
1 |
13637 A |
$12.00 |
| 38 |
3/8
Bolt/Nut /Washer |
1 |
13638
A |
$0.95 |
| 39 |
Clutch
Rope Spring |
2 |
13639
A |
$4.95 |
| 40 |
5/16
X I 72 Bolt/Nut/Washer |
6 |
13640
A |
$0.95 |
| 41 |
Left
Bag Upright |
1 |
13641 A |
$14.00 |
| 42 |
Right
Bag Upright |
1 |
13642
A |
$14.00 |
| 43 |
Left Bag Support Bracket |
1 |
13643
A |
$41.00 |
| 44 |
Right Bag Support Bracket |
1 |
13644
A |
$45.00 |
| 45 |
Bag
Support Cross Rod |
4 |
13645
A |
$7.00 |
| 46 |
Bag Dump Arm |
1 |
13646
A |
$21.00 |
| 47 |
Plastic
Cap |
4 |
13647
A |
$0.50 |
| 48 |
Bag
Assembly |
1 |
13648
A |
$87.00 |
| 49 |
Brush
Assembly |
1 |
13649
A |
$69.00 |
| 50 |
3/8”
Push Cap |
1 |
13650
A |
$0.60 |
| 51 |
Intermediate
Drive Sprocket |
1 |
13651
A |
$21.00 |
| 52 |
Clutch Rope |
1 |
13652
A |
$6.00 |
| 53 |
5/8
Bronze Bushing |
2 |
13653
A |
$6.00 |
| 54 |
1/4”
Sheet Metal Screw |
1 |
13654
A |
$0.25 |
| 55 |
Lift
Yoke |
1 |
13655
A |
$9.50 |
| 56 |
Drive
Spring |
1 |
13656
A |
$7.00 |
| 57 |
Washer
And 1/2” Push Cap |
1 |
13657
A |
$1.75 |
| 58 |
Grease
Fitting |
3 |
13658
A |
$0.70 |
| 59 |
Tensioner
Arm |
1 |
13659
A |
$11.00 |
| 60 |
Nylon
Idler |
1 |
13660
A |
$9.00 |
All Parts Plus Shipping.
* #
13606A Ratchet Holder Assembly is available for older
machines designed this
way. Machines manufactured
by
Wikco Industries, and many machines previously manufactured use
the new design with the holder welded to the wheel rim. Units
with
the new
design, the entire wheel assembly would have to be replaced; the holder
however, should not break now, so replacement
of
the entire wheel assembly will rarely be necessary. The drawing shows
part
#13606A
